Littelfuse Inc.-021501.6MXF18P - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Cartridge, Ceramic
Current Rating (Amps):	1.6 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	Radial Bend Cylinder
Breaking Capacity @ Rated Voltage:	1.5kA
Melting I²t:	6.83
Approval Agency:	CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.205" Dia x 0.787" L (5.20mm x 20.00mm)

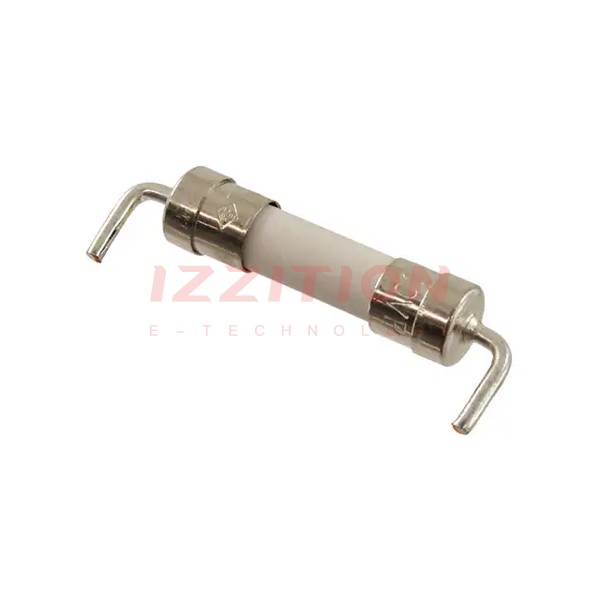

Littelfuse Inc. 021501.6MXF18P
