Littelfuse Inc.-0202001.H - Fuses Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	1 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Fast Blow
Package / Case:	2-DIP (0.400", 10.16mm)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.192
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm)

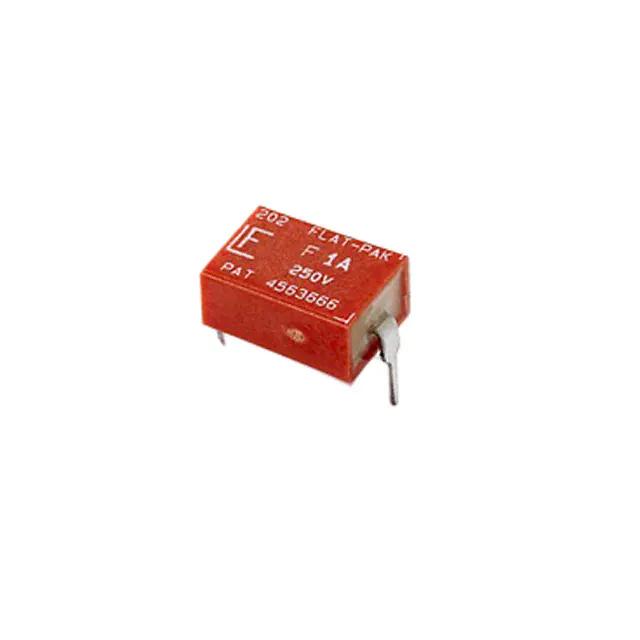

Littelfuse Inc. 0202001.H
