Littelfuse Inc.-016002.5MR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Holder, Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	2.5 A
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Response Time:	Slow Blow
Package / Case:	2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	22.2
Approval Agency:	cULus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm)

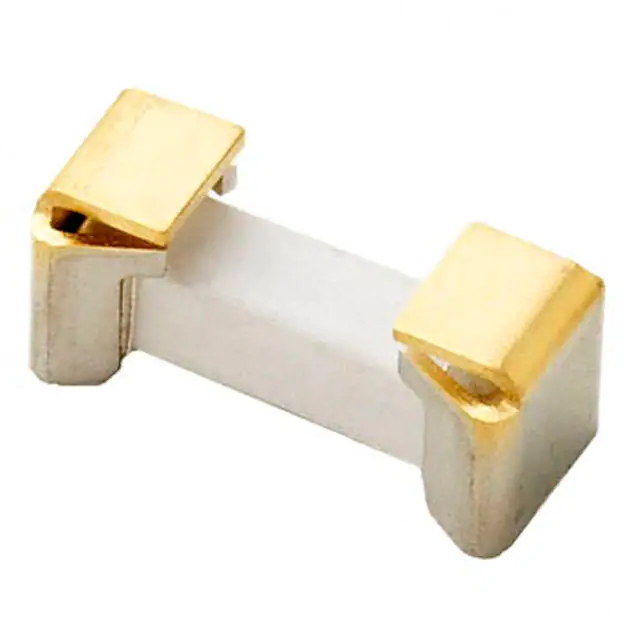

Littelfuse Inc. 016002.5MR
