Mounting Type:	Holder, Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	80 mA
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	2-SMD, Square End Block with Holder
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.00033
Approval Agency:	CSA, UL
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)

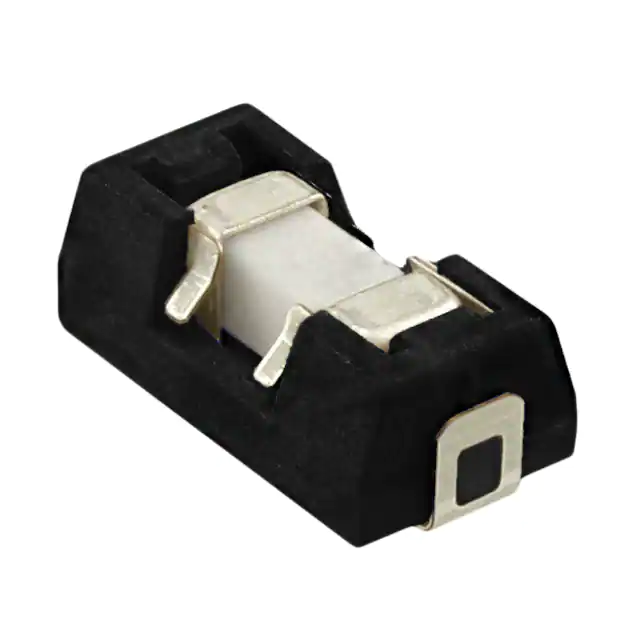

Littelfuse Inc. 0154.080DRL
