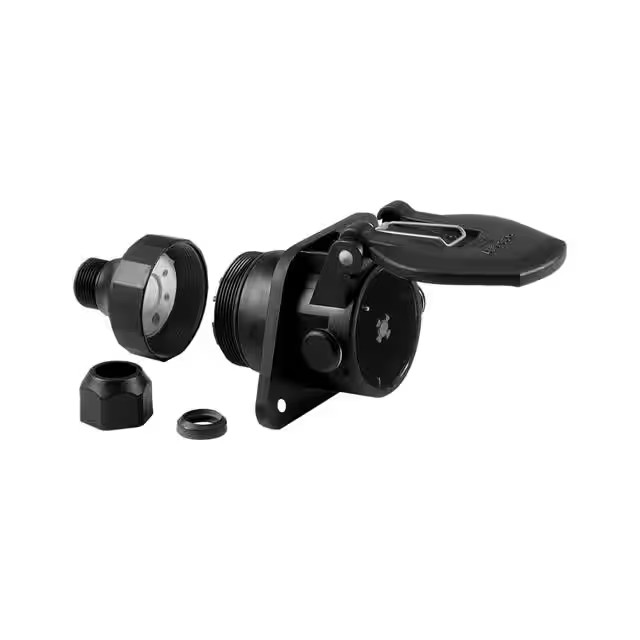

Littelfuse Inc.-00585500 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Male Pins
Number of Positions:	5
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line); Panel Mount
Mounting Feature:	Flange
Termination:	Crimp
Fastening Type:	Bayonet Lock
Orientation:	Keyed
Primary Material:	Plastic
Shell Material:	Plastic
Shell Finish:	-
Contact Finish - Mating:	-
Color:	Black
Ingress Protection:	-
Material Flammability Rating:	-
Features:	Backshell, Cap (Cover)
Shielding:	Unshielded
Current Rating (Amps):	-
Voltage Rating:	24V
Cable Opening:	0.610" (15.50mm)
Operating Temperature:	-

Littelfuse Inc. 00585500
