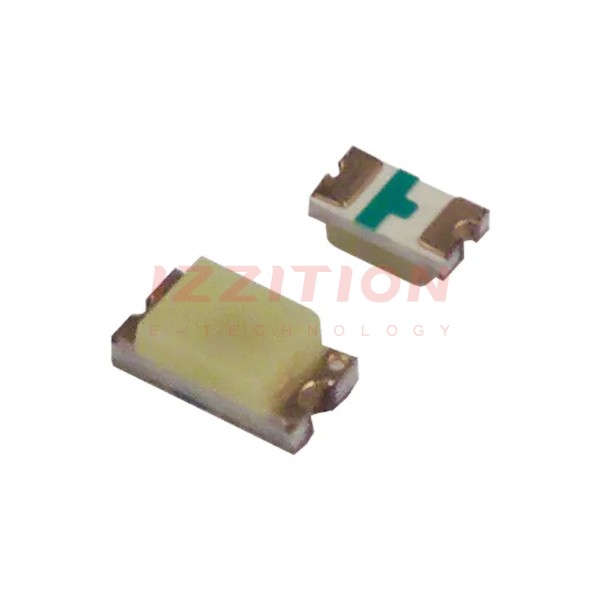

| Part Number | LTW-C191TL5 | LTW-C191TS5 | LTW-C191TLA | LTW-C192TL5 |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Color | White | White | White | White |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Yellow | Yellow | Yellow | Yellow |
| Lens Transparency | - | - | - | - |
| Millicandela Rating | 113mcd | 112.5mcd | 206mcd | 113mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm | 1.15mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.93V | 2.93V | 3.1V | 2.93V |
| Current - Test | 5mA | 5mA | 10mA | 5mA |
| Viewing Angle | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | - | - | - | - |
| Features | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm | 0.55mm | 0.55mm | 0.40mm |
