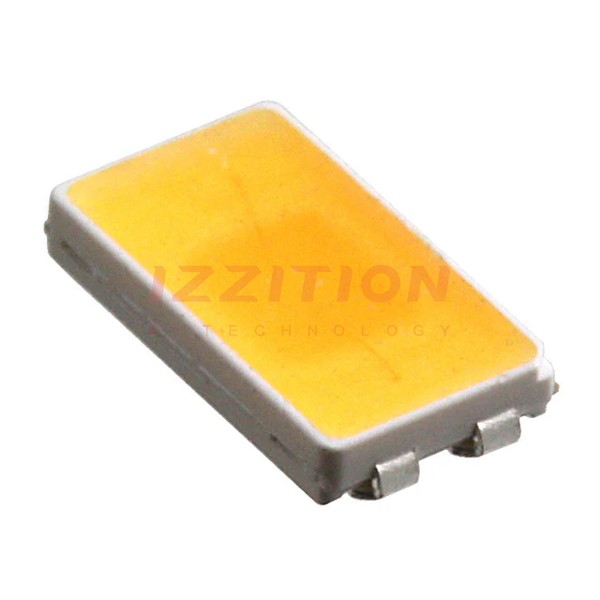

| Part Number | LTW-5630AZL50 | LTW-5630AZL30 | LTW-5630AZL40 |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | White, Cool | White, Warm | White, Neutral |
| CCT (K) | 5000K | 3000K | 4000K |
| Flux @ 85°C, Current - Test | - | - | - |
| Flux @ 25°C, Current - Test | 55lm (46lm ~ 64lm) | 52lm (43lm ~ 61lm) | 53lm (44lm ~ 62lm) |
| Current - Test | 120mA | 120mA | 120mA |
| Voltage - Forward (Vf) (Typ) | 3.13V | 3.13V | 3.13V |
| Lumens/Watt @ Current - Test | 146 lm/W | 138 lm/W | 141 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Current - Max | 200mA | 200mA | 200mA |
| Viewing Angle | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad |
| Supplier Device Package | 5630 | 5630 | 5630 |
| Size / Dimension | 0.209" L x 0.118" W (5.30mm x 3.00mm) | 0.209" L x 0.118" W (5.30mm x 3.00mm) | 0.209" L x 0.118" W (5.30mm x 3.00mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
