LTW-5630AZL30
  • Share:

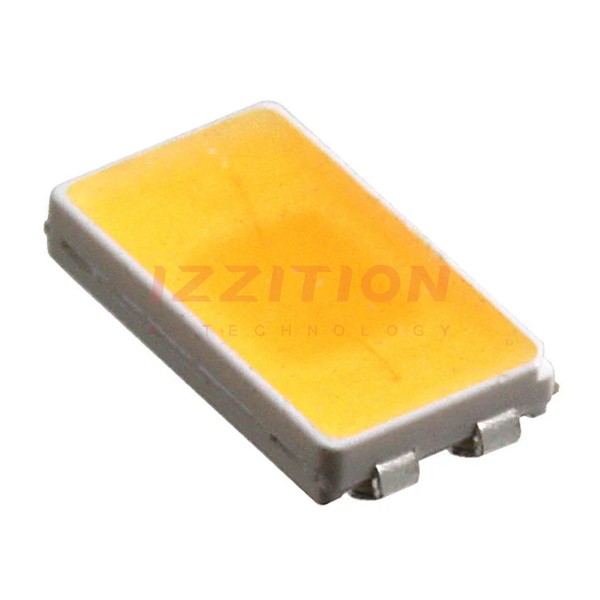

Lite-On Inc. LTW-5630AZL30

Manufacturer No:
LTW-5630AZL30
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTW-5630AZL30 Datasheet
ECAD Model:
-
Description:
LED AZL WARM WHITE 3000K 4SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Color:White, Warm
CCT (K):3000K
Flux @ 85°C, Current - Test:-
Flux @ 25°C, Current - Test:52lm (43lm ~ 61lm)
Current - Test:120mA
Voltage - Forward (Vf) (Typ):3.13V
Lumens/Watt @ Current - Test:138 lm/W
CRI (Color Rendering Index):80
Current - Max:200mA
Viewing Angle:120°
Mounting Type:Surface Mount
Package / Case:4-SMD, Flat Lead Exposed Pad
Supplier Device Package:5630
Size / Dimension:0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max):0.043" (1.10mm)
0 Remaining View Similar

In Stock

$0.46
1,131

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTW-5630AZL30 LTW-5630AZL40   LTW-5630AZL50   LTW-5630AZL35
Manufacturer Lite-On Inc. Lite-On Inc. Lite-On Inc. Lite-On Inc.
Product Status Active Active Active Active
Color White, Warm White, Neutral White, Cool White, Warm
CCT (K) 3000K 4000K 5000K 3500K
Flux @ 85°C, Current - Test - - - -
Flux @ 25°C, Current - Test 52lm (43lm ~ 61lm) 53lm (44lm ~ 62lm) 55lm (46lm ~ 64lm) 53lm (44lm ~ 62lm)
Current - Test 120mA 120mA 120mA 120mA
Voltage - Forward (Vf) (Typ) 3.13V 3.13V 3.13V 3.13V
Lumens/Watt @ Current - Test 138 lm/W 141 lm/W 146 lm/W 141 lm/W
CRI (Color Rendering Index) 80 80 80 80
Current - Max 200mA 200mA 200mA 200mA
Viewing Angle 120° 120° 120° 120°
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 4-SMD, Flat Lead Exposed Pad 4-SMD, Flat Lead Exposed Pad 4-SMD, Flat Lead Exposed Pad 4-SMD, Flat Lead Exposed Pad
Supplier Device Package 5630 5630 5630 5630
Size / Dimension 0.209" L x 0.118" W (5.30mm x 3.00mm) 0.209" L x 0.118" W (5.30mm x 3.00mm) 0.209" L x 0.118" W (5.30mm x 3.00mm) 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) 0.043" (1.10mm) 0.043" (1.10mm) 0.043" (1.10mm) 0.043" (1.10mm)
