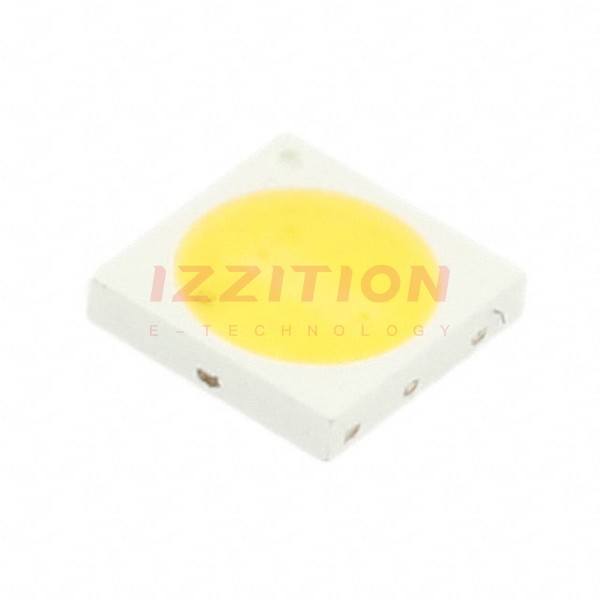

| Part Number | LTW-3030AZL30 | LTW-3030AZL40 |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete |
| Color | White, Warm | White, Neutral |
| CCT (K) | 3000K | 4000K |
| Flux @ 85°C, Current - Test | - | - |
| Flux @ 25°C, Current - Test | 116lm (100lm ~ 132lm) | 116lm (100lm ~ 132lm) |
| Current - Test | 150mA | 150mA |
| Voltage - Forward (Vf) (Typ) | 6.3V | 6.3V |
| Lumens/Watt @ Current - Test | 123 lm/W | 123 lm/W |
| CRI (Color Rendering Index) | 80 | 80 |
| Current - Max | 200mA | 200mA |
| Viewing Angle | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1212 (3030 Metric) | 1212 (3030 Metric) |
| Supplier Device Package | 3030 | 3030 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.025" (0.63mm) | 0.025" (0.63mm) |
