Lite-On Inc.-LTV-M601 - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	21ns, 7ns
Voltage - Forward (Vf) (Typ):	1.38V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	2.7V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SOP

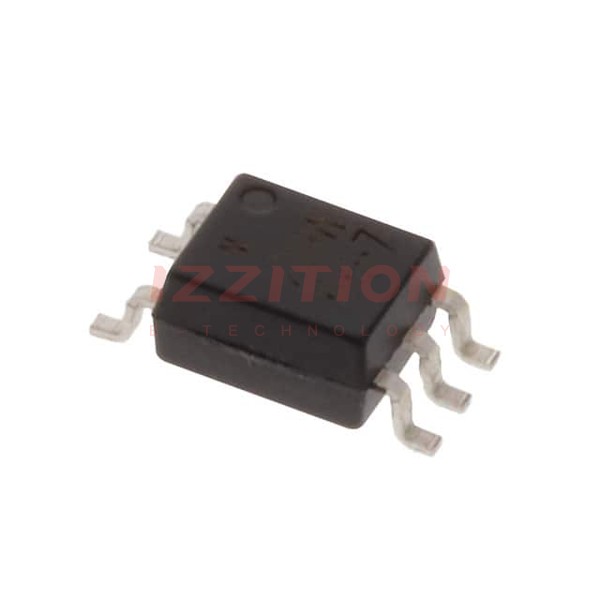

Lite-On Inc. LTV-M601
