LTV-815M
  • Share:

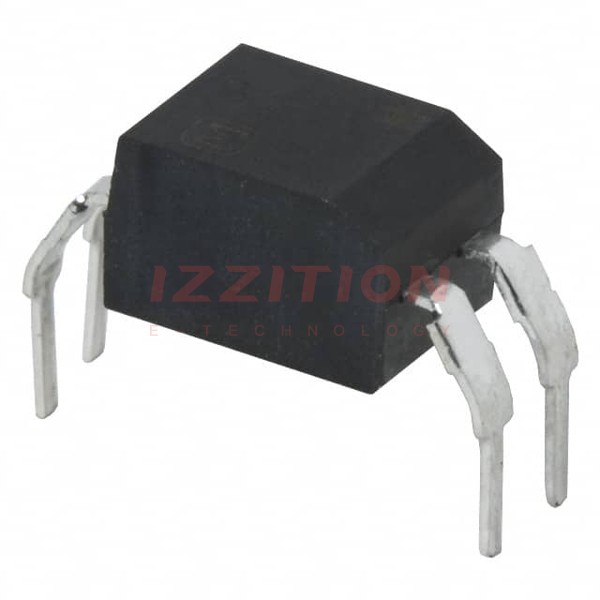

Lite-On Inc. LTV-815M

Manufacturer No:
LTV-815M
Manufacturer:
Lite-On Inc.
Package:
Tube
Datasheet:
LTV-815M Datasheet
ECAD Model:
-
Description:
OPTOISOLTR 5KV DARLINGTON 4-DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):600% @ 1mA
Current Transfer Ratio (Max):7500% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):60µs, 53µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
0 Remaining View Similar

In Stock

$0.12
1,651

Please send RFQ , we will respond immediately.
