LTV-814HS-TA1
  • Share:

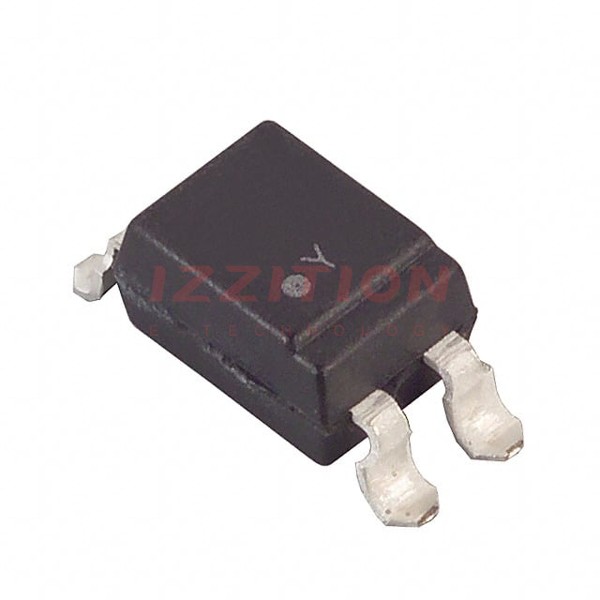

Lite-On Inc. LTV-814HS-TA1

Manufacturer No:
LTV-814HS-TA1
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTV-814HS-TA1 Datasheet
ECAD Model:
-
Description:
OPTOISOLATR 5KV TRANSISTOR 4-SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):20% @ 100mA
Current Transfer Ratio (Max):80% @ 100mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):150 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

$0.54
394

Please send RFQ , we will respond immediately.
