LTV-814HM
  • Share:

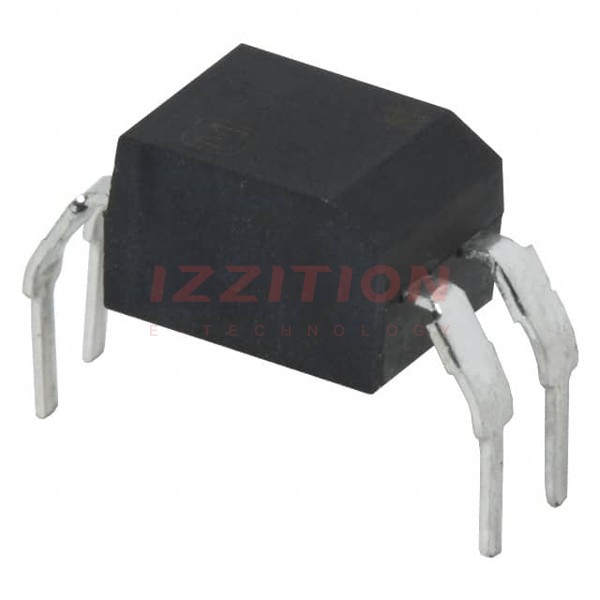

Lite-On Inc. LTV-814HM

Manufacturer No:
LTV-814HM
Manufacturer:
Lite-On Inc.
Package:
Tube
Datasheet:
LTV-814HM Datasheet
ECAD Model:
-
Description:
OPTOISOLATR 5KV TRANSISTOR 4-DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):20% @ 100mA
Current Transfer Ratio (Max):80% @ 100mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):150 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
0 Remaining View Similar

In Stock

-
474

Please send RFQ , we will respond immediately.
