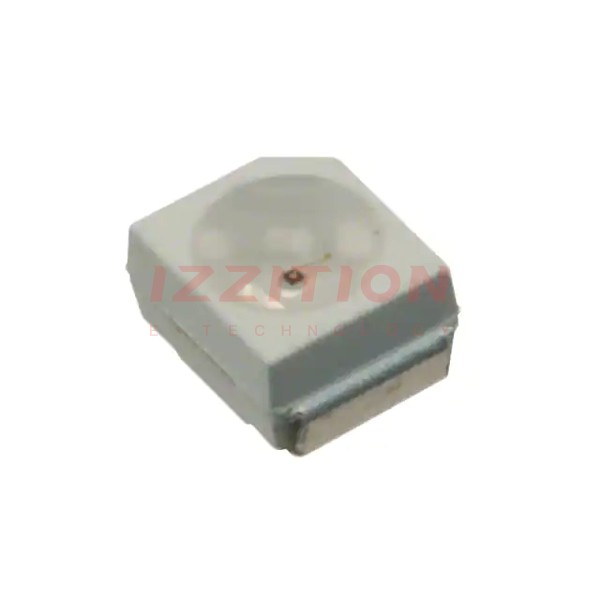

| Part Number | LTST-T680TGWT | LTST-T680KGWT | LTST-T680TBWT | LTST-T680TGKT |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Color | Green | Green | Blue | Green |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Clear |
| Millicandela Rating | 738mcd | 118mcd | 295mcd | 628mcd |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | - | - | - | - |
| Voltage - Forward (Vf) (Typ) | 3.3V | 2V | 3.3V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 528nm | 571nm | 470nm | 528nm |
| Wavelength - Peak | 523nm | 575nm | 468nm | 518nm |
| Features | - | - | - | - |
| Package / Case | 2-LCC (J-Lead) | 2-LCC (J-Lead) | 2-LCC (J-Lead) | 2-PLCC |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 1.90mm | 1.90mm | 1.90mm | 2.00mm |
