Please send RFQ , we will respond immediately.

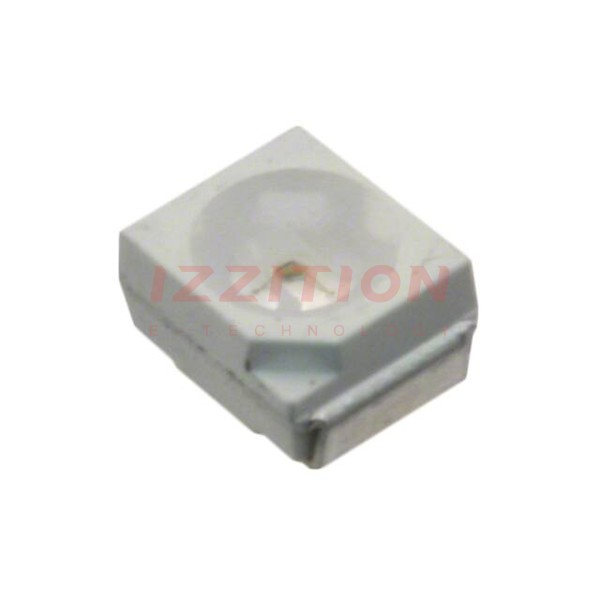

| Part Number | LTST-T680TGKT | LTST-T680TGWT | LTST-T680UGKT | LTST-T680KGKT | LTST-T680TBKT |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Color | Green | Green | Green | Green | Blue |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | - | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Diffused | Clear | Clear | Clear |
| Millicandela Rating | 628mcd | 738mcd | 1255mcd | 92.5mcd | 248mcd |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | - | - | - | - | - |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.3V | 3.2V | 2V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 528nm | 528nm | 528nm | 571nm | 470nm |
| Wavelength - Peak | 518nm | 523nm | 518nm | 574nm | 468nm |
| Features | - | - | - | - | - |
| Package / Case | 2-PLCC | 2-LCC (J-Lead) | 2-PLCC | 2-PLCC | 2-PLCC |
| Supplier Device Package | 2-PLCC | 2-SMD | 2-PLCC | 2-PLCC | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 2.00mm | 1.90mm | 2.00mm | 2.00mm | 2.00mm |
