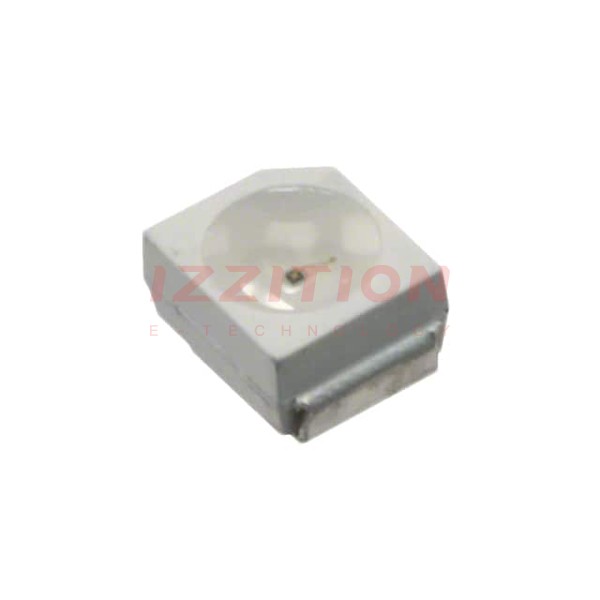

| Part Number | LTST-T680QSKT | LTST-T680VSKT | LTST-T680KSKT | LTST-T680QEKT |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Color | Yellow | Yellow | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 785mcd | 1055mcd | 233.5mcd | 785mcd |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | - | - | - | - |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 590nm | 590nm | 590nm | 624nm |
| Wavelength - Peak | 591nm | 591nm | 591nm | 631nm |
| Features | - | - | - | - |
| Package / Case | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC |
| Supplier Device Package | 2-PLCC | 2-PLCC | 2-PLCC | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W | 3.20mm L x 2.80mm W |
| Height (Max) | 2.00mm | 2.00mm | 2.00mm | 2.00mm |
