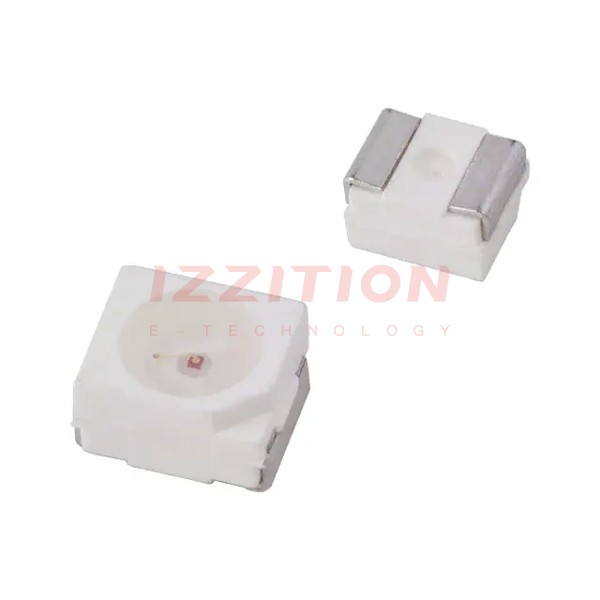

| Part Number | LTST-T670YKT | LTST-T670AKT | LTST-T670EKT | LTST-T670GKT |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Yellow | Orange | Red | Green |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 12.4mcd | 12.4mcd | 12.4mcd | 20mcd |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | - | - | - | - |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2V | 2.1V |
| Current - Test | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 588nm | 602nm | 621nm | 569nm |
| Wavelength - Peak | 585nm | 610nm | 635nm | 565nm |
| Features | - | - | - | - |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | 2-PLCC | - | 2-PLCC | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.70mm W | 3.20mm L x 2.70mm W | 3.20mm L x 2.70mm W | 3.20mm L x 2.70mm W |
| Height (Max) | 2.05mm | 2.05mm | 2.05mm | 2.05mm |
