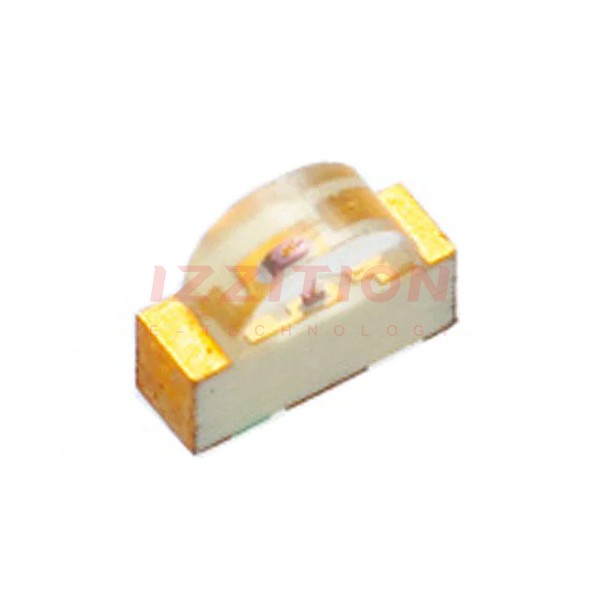

| Part Number | LTST-S321KGKT | LTST-S321KRKT | LTST-S321KSKT | LTST-S320KGKT | LTST-S321GKT | LTST-S321KFKT |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Color | Green | Red | Yellow | Green | Green | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 35mcd | 54mcd | 113mcd | 35mcd | 12mcd | 90mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2.1V | 2V | 2.1V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 571nm | 631nm | 591nm | 571nm | 569nm | 605nm |
| Wavelength - Peak | 574nm | 639nm | 588nm | 574nm | 565nm | 611nm |
| Features | - | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | 1208 | 1208 | 1208 | 1208 | 1208 | 1208 |
| Size / Dimension | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W |
| Height (Max) | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm |
