LTST-S320TBKT
  • Share:

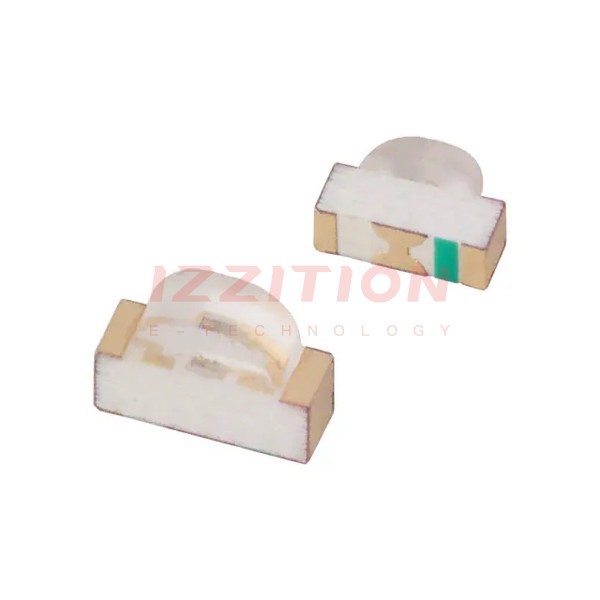

Lite-On Inc. LTST-S320TBKT

Manufacturer No:
LTST-S320TBKT
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTST-S320TBKT Datasheet
ECAD Model:
-
Description:
LED BLUE CLEAR 1208 SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Color:Blue
Configuration:Standard
Lens Color:Colorless
Lens Transparency:Clear
Millicandela Rating:30mcd
Lens Style:Rectangle with Domed Top
Lens Size:2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ):3.4V
Current - Test:20mA
Viewing Angle:130°
Mounting Type:Surface Mount, Right Angle
Wavelength - Dominant:470nm
Wavelength - Peak:468nm
Features:-
Package / Case:2-SMD, No Lead
Supplier Device Package:1208
Size / Dimension:3.00mm L x 2.00mm W
Height (Max):1.00mm
0 Remaining View Similar

In Stock

-
104

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTST-S320TBKT LTST-S321TBKT   LTST-S320UBKT   LTST-S220TBKT
Manufacturer Lite-On Inc. Lite-On Inc. Lite-On Inc. Lite-On Inc.
Product Status Obsolete Active Obsolete Active
Color Blue Blue Blue Blue
Configuration Standard Independent Standard Standard
Lens Color Colorless Colorless Colorless Colorless
Lens Transparency Clear Clear Clear Clear
Millicandela Rating 30mcd 104mcd 4.5mcd 104mcd
Lens Style Rectangle with Domed Top Rectangle with Domed Top Rectangle with Domed Top Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm 2.00mm x 1.00mm 2.00mm x 1.00mm 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) 3.4V 3.3V 3.8V 3.3V
Current - Test 20mA 20mA 20mA 20mA
Viewing Angle 130° 130° 130° 130°
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Wavelength - Dominant 470nm 470nm 466nm 470nm
Wavelength - Peak 468nm 468nm 428nm 468nm
Features - - - -
Package / Case 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead Exposed Pad
Supplier Device Package 1208 1208 - SMD
Size / Dimension 3.00mm L x 2.00mm W 3.00mm L x 2.00mm W 3.00mm L x 2.00mm W 2.10mm L x 1.00mm W
Height (Max) 1.00mm 1.00mm 1.00mm 0.60mm
