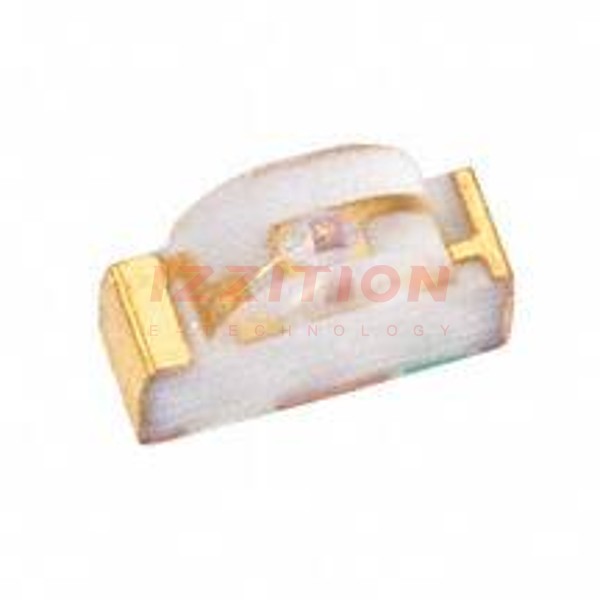

| Part Number | LTST-S320KEKT | LTST-S320KGKT | LTST-S320KRKT | LTST-S320KSKT | LTST-S320KYKT | LTST-S320EKT |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Green | Red | Yellow | Amber | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 50mcd | 35mcd | 54mcd | 60mcd | 50mcd | 4mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 624nm | 571nm | 631nm | 589nm | 592nm | 621nm |
| Wavelength - Peak | 632nm | 574nm | 639nm | 591nm | 595nm | 630nm |
| Features | - | - | - | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | Chip LED | 1208 | 1208 | 1208 | Chip LED | - |
| Size / Dimension | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W | 3.00mm L x 2.00mm W |
| Height (Max) | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm |
