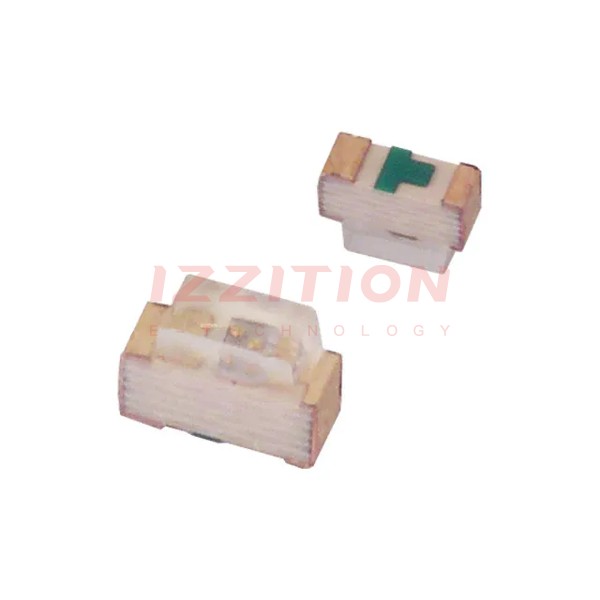

| Part Number | LTST-S270TBKT | LTST-S271TBKT | LTST-S220TBKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Blue | Blue | Blue |
| Configuration | Standard | Independent | Standard |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 104mcd | 104mcd | 104mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Domed Top |
| Lens Size | 1.20mm x 0.60mm | 1.20mm x 0.60mm | 1.70mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.3V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 470nm | 470nm | 470nm |
| Wavelength - Peak | 468nm | 468nm | 468nm |
| Features | - | - | - |
| Package / Case | 0603 (1608 Metric) | 2-SMD, 0604 | 2-SMD, No Lead Exposed Pad |
| Supplier Device Package | Chip LED | Chip LED | SMD |
| Size / Dimension | 1.60mm L x 1.15mm W | 1.65mm L x 1.15mm W | 2.10mm L x 1.00mm W |
| Height (Max) | 0.60mm | 0.45mm | 0.60mm |
