Lite-On Inc.-LTST-S270KSKT - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTST-S270KSKT	LTST-S220KSKT	LTST-S270KAKT	LTST-S270KFKT	LTST-S270KGKT	LTST-S270KRKT
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Obsolete	Active	Active	Active
Color	Yellow	Yellow	Red-Orange	Orange	Green	Red
Configuration	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Colorless	Colorless	Colorless	Colorless	Colorless	Colorless
Lens Transparency	Clear	Clear	Clear	Clear	Clear	Clear
Millicandela Rating	80mcd	54mcd	55mcd	90mcd	45mcd	54mcd
Lens Style	Rectangle with Flat Top	Rectangle with Domed Top	Rectangle with Flat Top	Rectangle with Flat Top	Rectangle with Flat Top	Rectangle with Flat Top
Lens Size	1.20mm x 0.60mm	1.70mm x 0.60mm	1.20mm x 0.60mm	1.20mm x 0.60mm	1.20mm x 0.60mm	1.20mm x 0.60mm
Voltage - Forward (Vf) (Typ)	2V	2V	2V	2V	2V	2V
Current - Test	20mA	20mA	20mA	20mA	20mA	20mA
Viewing Angle	130°	130°	130°	130°	130°	130°
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Wavelength - Dominant	587nm	589nm	615nm	605nm	571nm	631nm
Wavelength - Peak	588nm	591nm	621nm	611nm	574nm	639nm
Features	-	-	-	-	-	-
Package / Case	2-SMD, No Lead	0805 (2012 Metric)	0603 (1608 Metric)	0603 (1608 Metric)	0603 (1608 Metric)	0603 (1608 Metric)
Supplier Device Package	Chip LED	Chip LED	Chip LED	SMD	Chip LED	Chip LED
Size / Dimension	1.65mm L x 1.15mm W	2.10mm L x 1.00mm W	1.60mm L x 1.15mm W	1.60mm L x 1.15mm W	1.60mm L x 1.15mm W	1.60mm L x 1.15mm W
Height (Max)	0.60mm	0.60mm	0.60mm	0.60mm	0.60mm	0.60mm

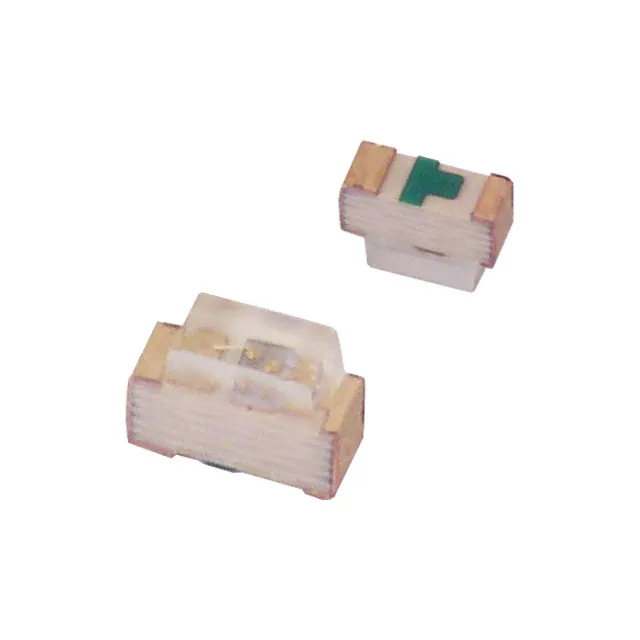

Lite-On Inc. LTST-S270KSKT
