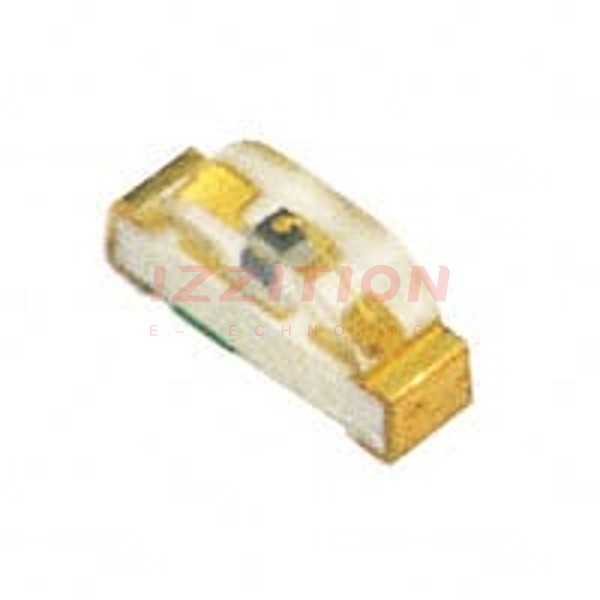

| Part Number | LTST-S220TBKT | LTST-S270TBKT | LTST-S220UBKT | LTST-S320TBKT |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Obsolete | Obsolete |
| Color | Blue | Blue | Blue | Blue |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear |
| Millicandela Rating | 104mcd | 104mcd | 4.5mcd | 30mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm | 1.20mm x 0.60mm | 1.70mm x 0.60mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.3V | 3.8V | 3.4V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 470nm | 470nm | 466nm | 470nm |
| Wavelength - Peak | 468nm | 468nm | 428nm | 468nm |
| Features | - | - | - | - |
| Package / Case | 2-SMD, No Lead Exposed Pad | 0603 (1608 Metric) | 0805 (2012 Metric) | 2-SMD, No Lead |
| Supplier Device Package | SMD | Chip LED | - | 1208 |
| Size / Dimension | 2.10mm L x 1.00mm W | 1.60mm L x 1.15mm W | 2.10mm L x 1.00mm W | 3.00mm L x 2.00mm W |
| Height (Max) | 0.60mm | 0.60mm | 0.60mm | 1.00mm |
