Lite-On Inc.-LTST-S220KSKT - LED Indication - Discrete Product Specifications and Latest Quotes

Part Number	LTST-S220KSKT	LTST-S270KSKT	LTST-S320KSKT	LTST-S220KFKT	LTST-S220KGKT	LTST-S220KRKT
Manufacturer	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.	Lite-On Inc.
Product Status	Active	Active	Obsolete	Active	Active	Active
Color	Yellow	Yellow	Yellow	Orange	Green	Red
Configuration	Standard	Standard	Standard	Standard	Standard	Standard
Lens Color	Colorless	Colorless	Colorless	Colorless	Colorless	Colorless
Lens Transparency	Clear	Clear	Clear	Clear	Clear	Clear
Millicandela Rating	54mcd	80mcd	60mcd	90mcd	35mcd	54mcd
Lens Style	Rectangle with Domed Top	Rectangle with Flat Top	Rectangle with Domed Top	Rectangle with Domed Top	Rectangle with Domed Top	Rectangle with Domed Top
Lens Size	1.70mm x 0.60mm	1.20mm x 0.60mm	2.00mm x 1.00mm	1.70mm x 0.60mm	1.70mm x 0.60mm	1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ)	2V	2V	2V	2V	2V	2V
Current - Test	20mA	20mA	20mA	20mA	20mA	20mA
Viewing Angle	130°	130°	130°	130°	130°	130°
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Wavelength - Dominant	589nm	587nm	589nm	605nm	568nm	631nm
Wavelength - Peak	591nm	588nm	591nm	611nm	574nm	639nm
Features	-	-	-	-	-	-
Package / Case	0805 (2012 Metric)	2-SMD, No Lead	2-SMD, No Lead	2-SMD, No Lead Exposed Pad	0805 (2012 Metric)	0805 (2012 Metric)
Supplier Device Package	Chip LED	Chip LED	1208	SMD	Chip LED	Chip LED
Size / Dimension	2.10mm L x 1.00mm W	1.65mm L x 1.15mm W	3.00mm L x 2.00mm W	2.10mm L x 1.00mm W	2.10mm L x 1.00mm W	2.10mm L x 1.00mm W
Height (Max)	0.60mm	0.60mm	1.00mm	0.60mm	0.60mm	0.60mm

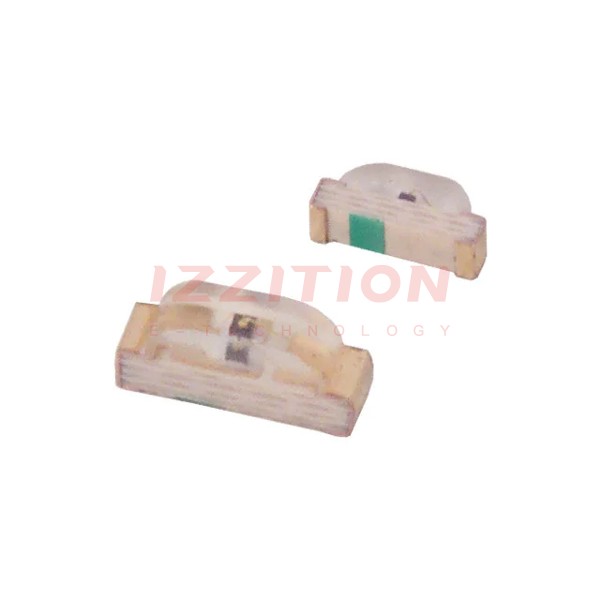

Lite-On Inc. LTST-S220KSKT
