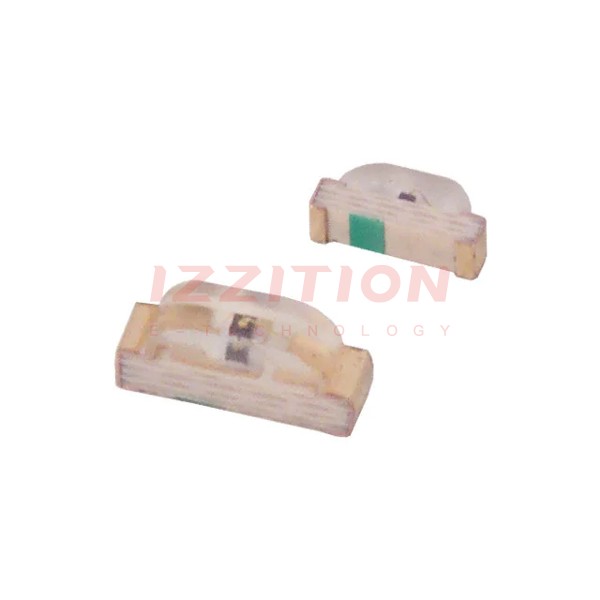

| Part Number | LTST-S220KGKT | LTST-S270KGKT | LTST-S220KRKT | LTST-S220KSKT | LTST-S320KGKT | LTST-S220GKT | LTST-S220KFKT |
|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Color | Green | Green | Red | Yellow | Green | Green | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 35mcd | 45mcd | 54mcd | 54mcd | 35mcd | 10mcd | 90mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm | 1.20mm x 0.60mm | 1.70mm x 0.60mm | 1.70mm x 0.60mm | 2.00mm x 1.00mm | 1.70mm x 0.60mm | 1.70mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2V | 2V | 2.1V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 568nm | 571nm | 631nm | 589nm | 571nm | 569nm | 605nm |
| Wavelength - Peak | 574nm | 574nm | 639nm | 591nm | 574nm | 565nm | 611nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 2-SMD, No Lead | 0805 (2012 Metric) | 2-SMD, No Lead Exposed Pad |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | 1208 | - | SMD |
| Size / Dimension | 2.10mm L x 1.00mm W | 1.60mm L x 1.15mm W | 2.10mm L x 1.00mm W | 2.10mm L x 1.00mm W | 3.00mm L x 2.00mm W | 2.10mm L x 1.00mm W | 2.10mm L x 1.00mm W |
| Height (Max) | 0.60mm | 0.60mm | 0.60mm | 0.60mm | 1.00mm | 0.60mm | 0.60mm |
