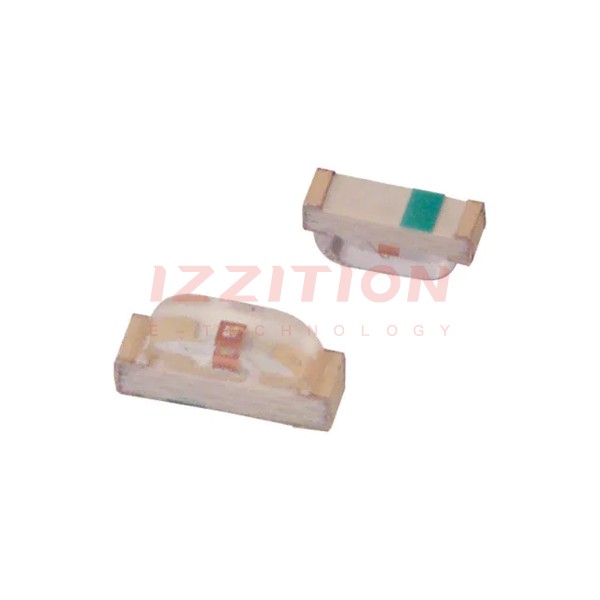

| Part Number | LTST-S220EKT | LTST-S220GKT | LTST-S270EKT | LTST-S220YKT | LTST-S320EKT |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Color | Red | Green | Red | Yellow | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 4mcd | 10mcd | 4mcd | 4mcd | 4mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Flat Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm | 1.70mm x 0.60mm | 1.20mm x 0.60mm | 1.70mm x 0.60mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2.1V | 2V | 2.1V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 621nm | 569nm | 621nm | 588nm | 621nm |
| Wavelength - Peak | 630nm | 565nm | 630nm | 585nm | 630nm |
| Features | - | - | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0603 (1608 Metric) | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead |
| Supplier Device Package | - | - | - | SMD | - |
| Size / Dimension | 2.10mm L x 1.00mm W | 2.10mm L x 1.00mm W | 1.60mm L x 1.15mm W | 2.10mm L x 1.00mm W | 3.00mm L x 2.00mm W |
| Height (Max) | 0.60mm | 0.60mm | 0.60mm | 0.60mm | 1.00mm |
