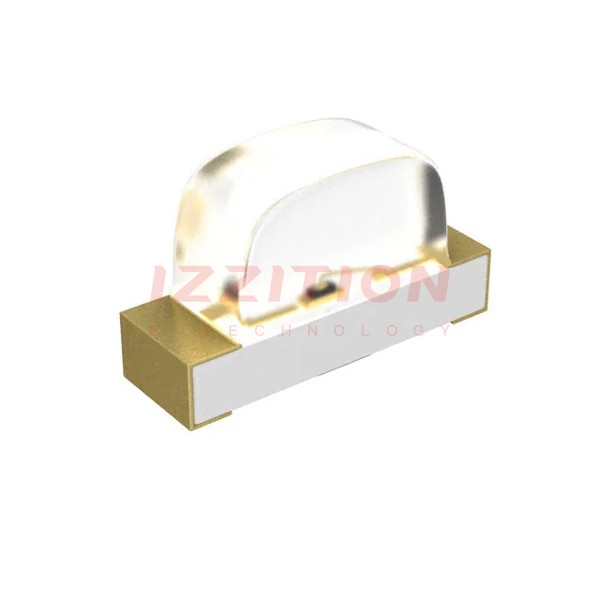

| Part Number | LTST-S110TGKT | LTST-S110KGKT | LTST-S110TBKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green | Green | Blue |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 260.5mcd | 35mcd | 104mcd |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.2V | 2V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm | 571nm | 470nm |
| Wavelength - Peak | 530nm | 574nm | 468nm |
| Features | - | - | - |
| Package / Case | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad |
| Supplier Device Package | SMD | SMD | SMD |
| Size / Dimension | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm | 1.00mm | 1.00mm |
