Please send RFQ , we will respond immediately.

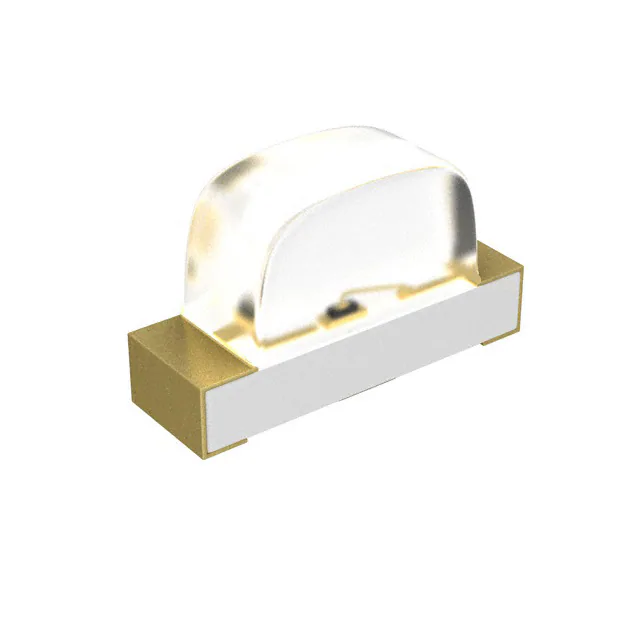

| Part Number | LTST-S110KSKT | LTST-S110KFKT | LTST-S110KGKT | LTST-S110KRKT |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active |
| Color | - | Orange | Green | Red |
| Configuration | - | Standard | Standard | Standard |
| Lens Color | - | Colorless | Colorless | Colorless |
| Lens Transparency | - | Clear | Clear | Clear |
| Millicandela Rating | - | 90mcd | 35mcd | 54mcd |
| Lens Style | - | Rectangle with Domed Top | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Size | - | 2.00mm x 1.00mm | 2.00mm x 1.00mm | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | - | 2V | 2V | 2V |
| Current - Test | - | 20mA | 20mA | 20mA |
| Viewing Angle | - | 130° | 130° | 130° |
| Mounting Type | - | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | - | 605nm | 571nm | 631nm |
| Wavelength - Peak | - | 611nm | 574nm | 639nm |
| Features | - | - | - | - |
| Package / Case | - | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad | 2-SMD, No Lead Exposed Pad |
| Supplier Device Package | - | SMD | SMD | SMD |
| Size / Dimension | - | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W | 3.20mm L x 1.50mm W |
| Height (Max) | - | 1.00mm | 1.00mm | 1.00mm |
