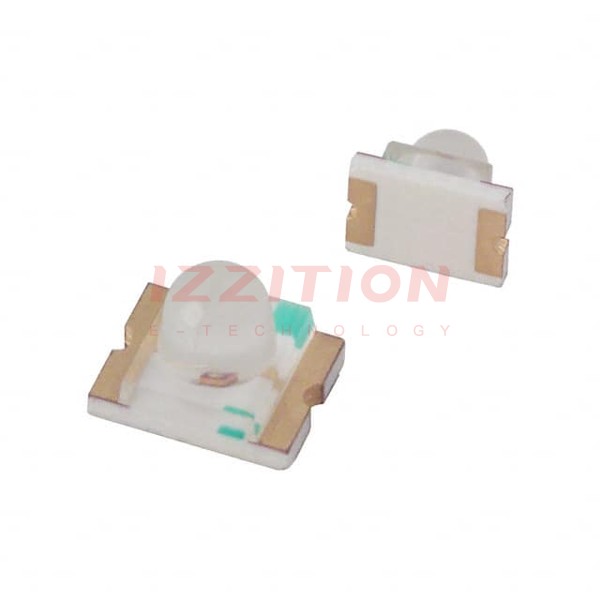

| Part Number | LTST-C930EKT | LTST-C930YKT | LTST-C930GKT | LTST-C230EKT | LTST-C930AKT | LTST-C930CKT |
|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Color | Orange | Yellow | Green | Red | Amber | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 25mcd | 16mcd | 40mcd | 6mcd | 16mcd | 320mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Rectangle with Flat Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.80mm Dia | 1.80mm Dia | 1.80mm Dia | 1.49mm x 1.60mm | 1.80mm Dia | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V | 2.1V | 2.1V | 2V | 2.1V | 1.8V |
| Current - Test | 10mA | 10mA | 10mA | 20mA | 10mA | 20mA |
| Viewing Angle | 25° | 25° | 25° | 130° | 25° | 25° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Bottom Entry | Surface Mount | Surface Mount |
| Wavelength - Dominant | 621nm | 588nm | 569nm | 621nm | 602nm | 638nm |
| Wavelength - Peak | 630nm | 585nm | 565nm | 630nm | 610nm | 660nm |
| Features | - | - | - | - | - | - |
| Package / Case | 1209 (3224 Metric) | 1209 (3224 Metric) | 1209 (3224 Metric) | 1206 (3216 Metric) | 1209 (3224 Metric) | 1209 (3224 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 2.40mm W | 3.20mm L x 2.40mm W | 3.20mm L x 2.40mm W | 3.20mm L x 1.60mm W | 3.20mm L x 2.40mm W | 3.20mm L x 2.40mm W |
| Height (Max) | 2.40mm | 2.40mm | 2.40mm | 1.10mm | 2.40mm | 2.40mm |
