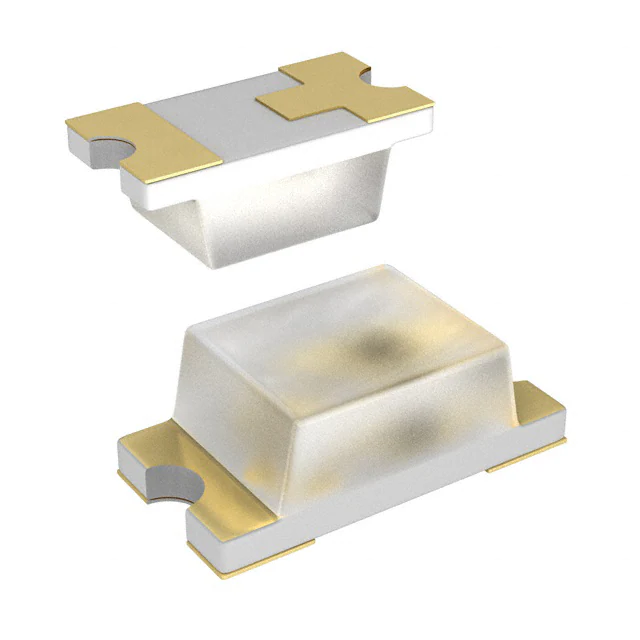

| Part Number | LTST-C295KGKRKT | LTST-C235KGKRKT | LTST-C295KGKFKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green, Red | Green, Red | Green, Orange |
| Configuration | Independent | Independent | Independent |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 35mcd Green, 45mcd Red | 35mcd Green, 45mcd Red | 35mcd Green, 90mcd Orange |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.50mm x 1.60mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red | 2V Green, 2V Red | 2V Green, 2V Orange |
| Current - Test | 20mA Green, 20mA Red | 20mA Green, 20mA Red | 20mA Green, 20mA Orange |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount, Bottom Entry | Surface Mount |
| Wavelength - Dominant | 571nm Green, 631nm Red | 571nm Green, 631nm Red | 571nm Green, 605nm Orange |
| Wavelength - Peak | 574nm Green, 639nm Red | 574nm Green, 639nm Red | 574nm Green, 611nm Orange |
| Features | - | - | - |
| Package / Case | 0603 (1608 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm | 1.10mm | 0.55mm |
