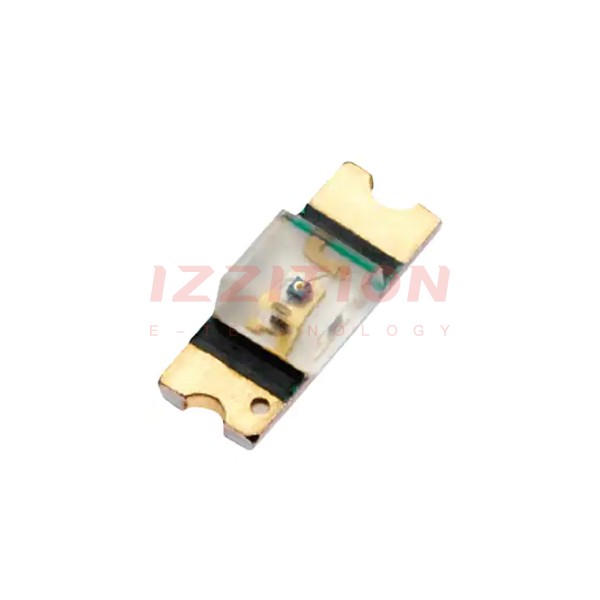

| Part Number | LTST-C250KGKT | LTST-C250KRKT | LTST-C230KGKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green | Red | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 65mcd | 113mcd | 35mcd |
| Lens Style | Square with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.20mm | 1.20mm x 1.20mm | 1.50mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V | 1.8V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 572nm | 631nm | 571nm |
| Wavelength - Peak | 574nm | 639nm | 574nm |
| Features | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 1206 (3216 Metric) |
| Supplier Device Package | 2-SMD | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.20mm W | 3.20mm L x 1.20mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 0.90mm | 0.90mm | 1.10mm |
