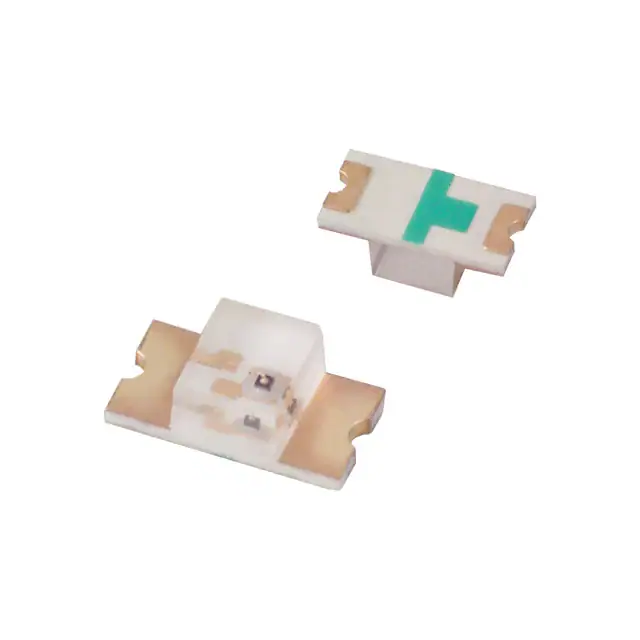

| Part Number | LTST-C230KRKT | LTST-C230KSKT | LTST-C930KRKT | LTST-C250KRKT | LTST-C230KAKT | LTST-C230KFKT | LTST-C230KGKT |
|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Color | Red | Yellow | Red | Red | Red-Orange | Orange | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 54mcd | 60mcd | 850mcd | 113mcd | 55mcd | 90mcd | 35mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Round with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.60mm | 1.50mm x 1.60mm | 1.80mm Dia | 1.20mm x 1.20mm | 1.49mm x 1.60mm | 1.50mm x 1.60mm | 1.50mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 1.8V | 2V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 25° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry | Surface Mount | Surface Mount | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 631nm | 587nm | 631nm | 631nm | 615nm | 605nm | 571nm |
| Wavelength - Peak | 639nm | 588nm | 639nm | 639nm | 621nm | 611nm | 574nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1209 (3224 Metric) | 2-SMD, No Lead | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 2.40mm W | 3.20mm L x 1.20mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm | 1.10mm | 2.40mm | 0.90mm | 1.10mm | 1.10mm | 1.10mm |
