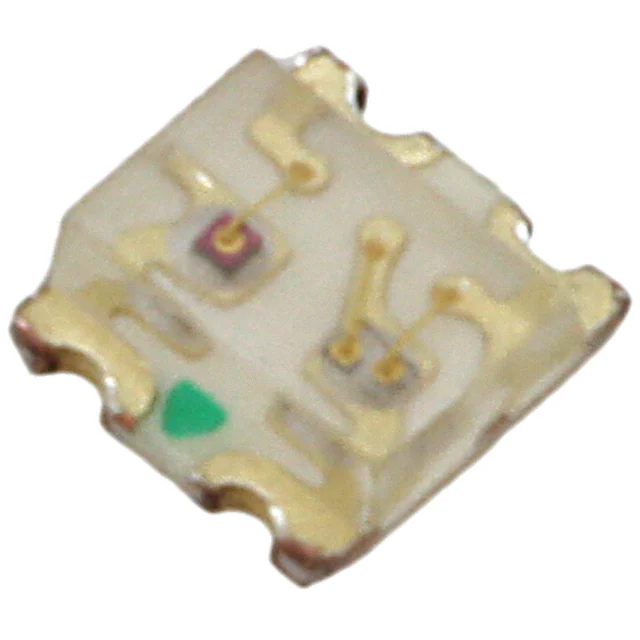

| Part Number | LTST-C195TBKFKT | LTST-C295TBKFKT |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active |
| Color | Blue, Orange | Blue, Orange |
| Configuration | Independent | Independent |
| Lens Color | Colorless | Colorless |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 104mcd Blue, 113mcd Orange | 104mcd Blue, 162.5mcd Orange |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2V Orange | 3.8V Blue, 2.4V Orange |
| Current - Test | 20mA Blue, 20mA Orange | 20mA Blue, 20mA Orange |
| Viewing Angle | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 605nm Orange | 470nm Blue, 605nm Orange |
| Wavelength - Peak | 468nm Blue, 611nm Orange | 468nm Blue, 611nm Orange |
| Features | - | - |
| Package / Case | 0605 (1613 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm | 0.55mm |
