Please send RFQ , we will respond immediately.

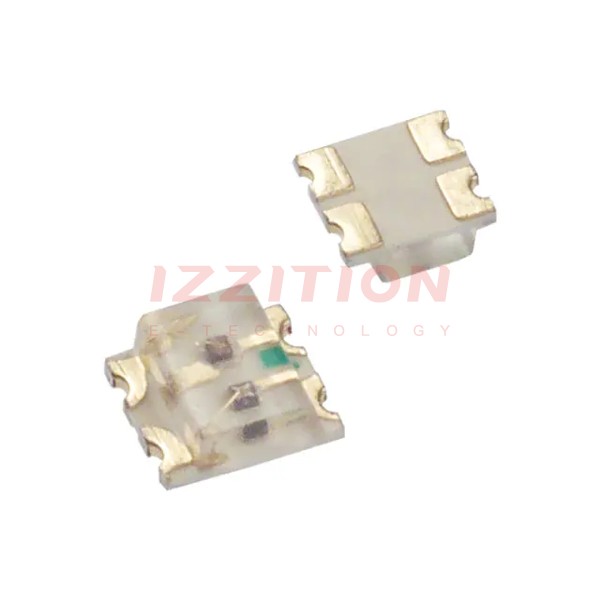

| Part Number | LTST-C195GYKT | LTST-C155GYKT | LTST-C195GEKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Color | Green, Yellow | Green, Yellow | Green, Red |
| Configuration | Independent | Independent | Independent |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 10mcd Green, 4.5mcd Yellow | 6mcd Green, 2.5mcd Yellow | 10mcd Green, 4.5mcd Red |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm | 2.06mm x 2.70mm | 1.10mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow | 2.1V Green, 2.1V Yellow | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Yellow | 10mA Green, 10mA Yellow | 20mA Green, 20mA Red |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 569nm Green, 588nm Yellow | 569nm Green, 588nm Yellow | 569nm Green, 621nm Red |
| Wavelength - Peak | 565nm Green, 585nm Yellow | 565nm Green, 585nm Yellow | 565nm Green, 630nm Red |
| Features | - | - | - |
| Package / Case | 0606 (1616 Metric) | 1210 (3225 Metric) | 0606 (1616 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W | 3.20mm L x 2.70mm W | 1.60mm L x 1.50mm W |
| Height (Max) | 0.55mm | 1.10mm | 0.55mm |
