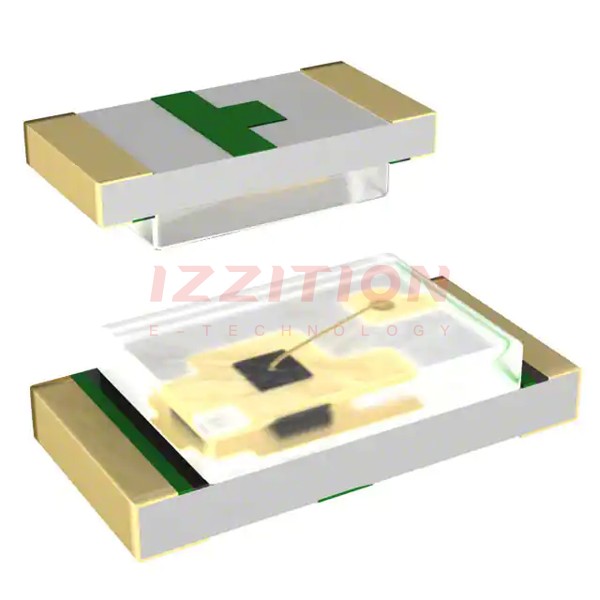

| Part Number | LTST-C193KGKT-5A | LTST-C193KRKT-5A | LTST-C193KSKT-5A | LTST-C193TGKT-5A | LTST-C193KFKT-5A |
|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Color | Green | Red | Yellow | Green | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 16.25mcd | 26.05mcd | 26.05mcd | 154mcd | 28.1mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.15mm x 0.80mm | 1.15mm x 0.80mm | 1.15mm x 0.80mm | 1.15mm x 0.80mm | 1.15mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2.8V | 2V |
| Current - Test | 5mA | 5mA | 5mA | 5mA | 5mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 572nm | 631nm | 591nm | 528nm | 605nm |
| Wavelength - Peak | 574nm | 639nm | 591nm | 525nm | 611nm |
| Features | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.45mm | 0.45mm | 0.45mm | 0.45mm | 0.35mm |
