Please send RFQ , we will respond immediately.

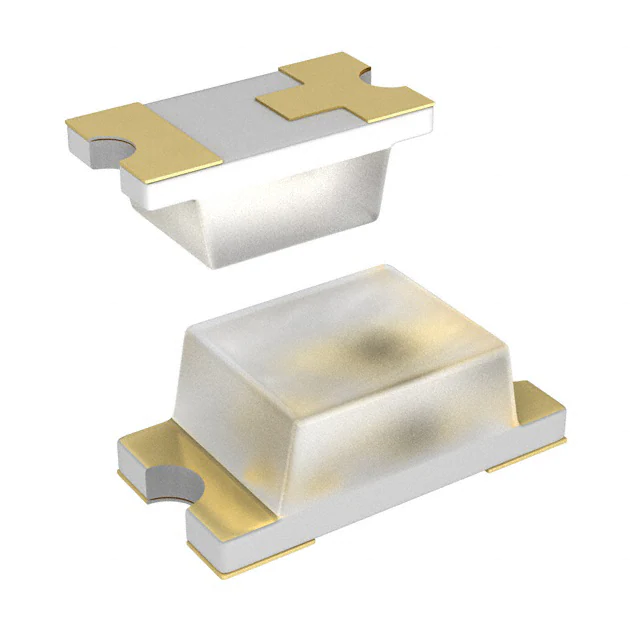

| Part Number | LTST-C190TGKT | LTST-C194TGKT | LTST-C191TGKT | LTST-C150TGKT | LTST-C170TGKT | LTST-C190GKT | LTST-C190KGKT | LTST-C190TBKT |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Color | Green | Green | Green | Green | Green | Green | Green | Blue |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 260.5mcd | 260.5mcd | 260.5mcd | 260.5mcd | 260.5mcd | 6mcd | 35mcd | 104mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.15mm x 0.80mm | 1.10mm x 0.80mm | 2.06mm x 1.60mm | 1.40mm x 1.25mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 2.1V | 2V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 10mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 525nm | 525nm | 525nm | 525nm | 525nm | 569nm | 571nm | 470nm |
| Wavelength - Peak | 530nm | 530nm | 530nm | 530nm | 530nm | 565nm | 574nm | 468nm |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED | - | Chip LED | 1206 | - | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 2.00mm L x 1.25mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.90mm | 0.45mm | 0.65mm | 1.10mm | 1.10mm | 0.90mm | 0.90mm | 0.90mm |
