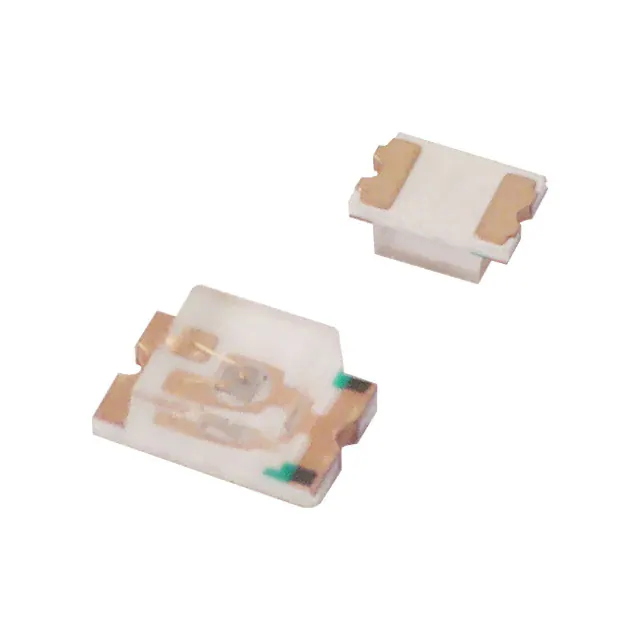

| Part Number | LTST-C171KGKT | LTST-C191KGKT | LTST-C171KRKT | LTST-C171KSKT | LTST-C171TGKT | LTST-C171KYKT | LTST-C170KGKT | LTST-C171GKT | LTST-C171KEKT | LTST-C171KFKT |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Color | Green | Green | Red | Yellow | Green | Amber | Green | Green | Red | Orange |
| Configuration | Standard | Standard | Standard | Standard | Independent | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 35mcd | 35mcd | 54mcd | 50mcd | 260.5mcd | 50mcd | 35mcd | 12mcd | 54mcd | 90mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm | 1.10mm x 0.80mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2V | 3.2V | 2V | 2V | 2.1V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 571nm | 571nm | 631nm | 587nm | 525nm | 592nm | 571nm | 569nm | 624nm | 605nm |
| Wavelength - Peak | 574nm | 574nm | 639nm | 588nm | 530nm | 595nm | 574nm | 565nm | 632nm | 611nm |
| Features | - | - | - | - | - | - | - | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | - | - | Chip LED | Chip LED | Chip LED | - | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 2.00mm L x 1.25mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W |
| Height (Max) | 0.90mm | 0.65mm | 0.90mm | 0.90mm | 0.90mm | 0.90mm | 1.10mm | 0.90mm | 0.90mm | 0.90mm |
