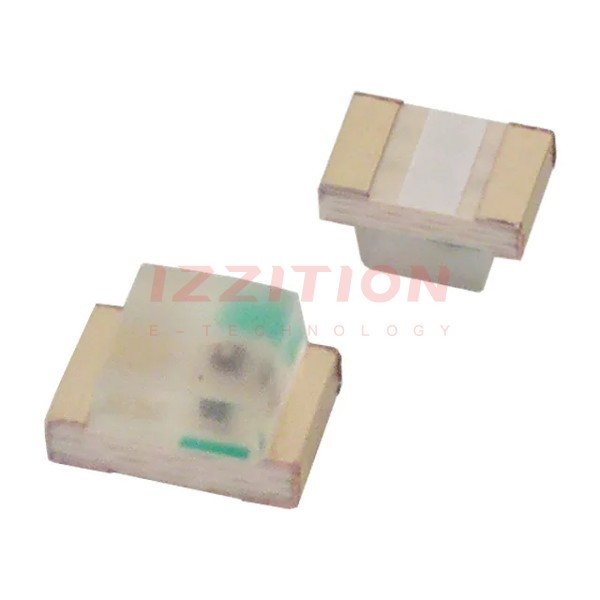

| Part Number | LTST-C170CKT | LTST-C170GKT | LTST-C170YKT | LTST-C170EKT | LTST-C190CKT | LTST-C171CKT | LTST-C150CKT | LTST-C170AKT |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Color | Red | Green | Yellow | Red | Red | Red | Red | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 10mcd | 6mcd | 6mcd | 2mcd | 10mcd | 25mcd | 10mcd | 2mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.40mm x 1.25mm | 1.10mm x 0.80mm | 1.40mm x 1.25mm | 2.06mm x 1.60mm | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 1.8V | 2.1V | 2.1V | 2V | 1.8V | 1.8V | 1.8V | 2.1V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA | 20mA | 20mA | 10mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 638nm | 569nm | 588nm | 621nm | 638nm | 638nm | 638nm | 602nm |
| Wavelength - Peak | 660nm | 565nm | 585nm | 630nm | 660nm | 660nm | 660nm | 610nm |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | - | - | - | Chip LED | Chip LED | 1206 | - |
| Size / Dimension | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 2.00mm L x 1.25mm W | 1.60mm L x 0.80mm W | 2.00mm L x 1.25mm W | 3.20mm L x 1.60mm W | 2.00mm L x 1.25mm W |
| Height (Max) | 1.10mm | 1.10mm | 1.10mm | 1.10mm | 0.90mm | 0.90mm | 1.10mm | 1.10mm |
