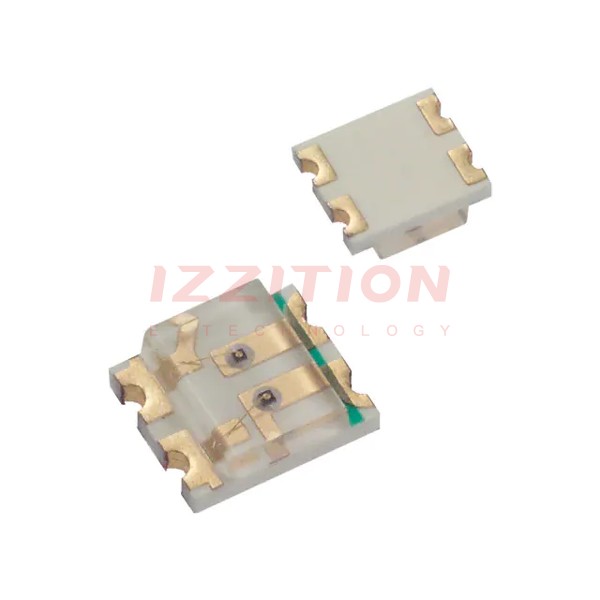

| Part Number | LTST-C155KGJSKT | LTST-C195KGJSKT | LTST-C155KGJRKT |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Color | Green, Yellow | Green, Yellow | Green, Red |
| Configuration | Independent | Independent | Independent |
| Lens Color | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear |
| Millicandela Rating | 35mcd Green, 30mcd Yellow | 35mcd Green, 75mcd Yellow | 35mcd Green, 45mcd Red |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | - | 1.10mm x 1.50mm | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Yellow | 2V Green, 2V Yellow | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Yellow | 20mA Green, 20mA Yellow | 20mA Green, 20mA Red |
| Viewing Angle | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 571nm Green, 589nm Yellow | 571nm Green, 589nm Yellow | 571nm Green, 631nm Red |
| Wavelength - Peak | 574nm Green, 591nm Yellow | 574nm Green, 591nm Yellow | 574nm Green, 639nm Red |
| Features | - | - | - |
| Package / Case | 1210 (3225 Metric) | 0606 (1616 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED | Chip LED | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W | 1.60mm L x 1.50mm W | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm | 0.55mm | 1.10mm |
