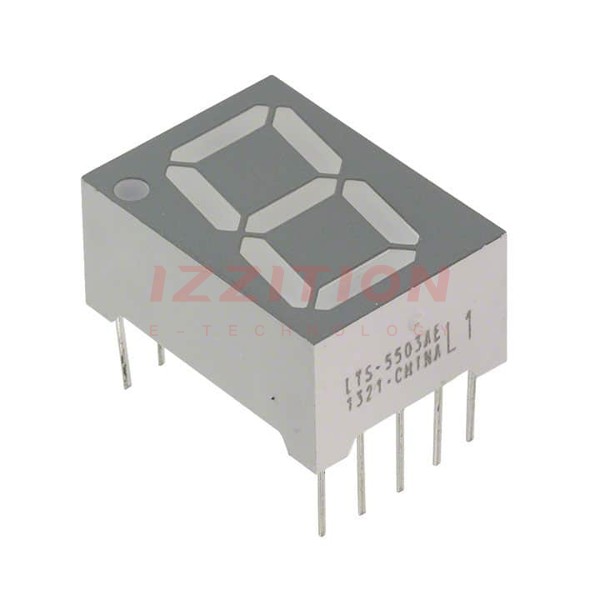

| Part Number | LTS-5503AE | LTS-5501AE | LTS-5503AB |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Obsolete |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Anode | Common Cathode |
| Color | Orange-Red | Orange-Red | Blue |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 3.8V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 2.4mcd | 2.4mcd | 4.3mcd |
| Wavelength - Peak | 630nm | 630nm | 428nm |
| Power Dissipation (Max) | 75mW | 75mW | 95mW |
| Package / Case | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) |
