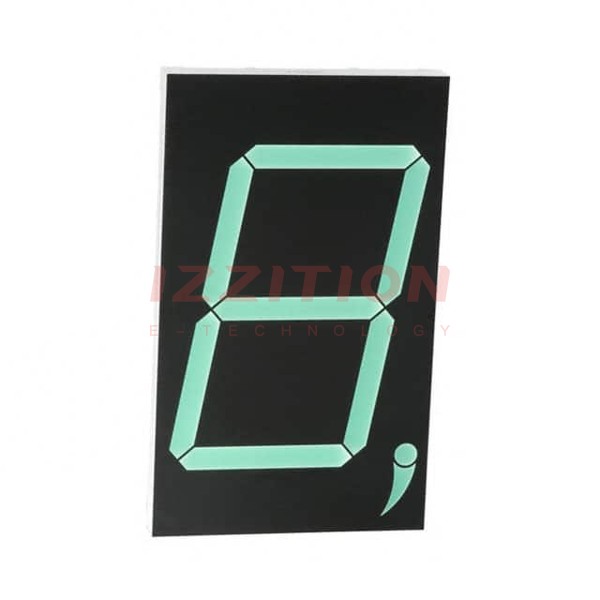

| Part Number | LTS-50301G | LTS-50801G | LTS-30301G |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Obsolete |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 7.087" H x 4.252" W x 0.630" D (180.00mm x 108.00mm x 16.00mm) | 7.087" H x 4.252" W x 0.630" D (180.00mm x 108.00mm x 16.00mm) | 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm) |
| Digit/Alpha Size | 5.00" (127.00mm) | 5.00" (127.00mm) | 3.00" (76.20mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Anode | Common Cathode |
| Color | Green | Green | Green |
| Voltage - Forward (Vf) (Typ) | 21V | 21V | 12.6V |
| Current - Test | 30mA | 30mA | 40mA |
| Millicandela Rating | 60mcd | 60mcd | 30mcd |
| Wavelength - Peak | 565nm | 565nm | 565nm |
| Power Dissipation (Max) | 1.2W | 1.2W | 650mW |
| Package / Case | 10-DIP (5.197", 132.00mm) | 10-DIP (5.197", 132.00mm) | 10-DIP (3.150", 80.00mm) |
