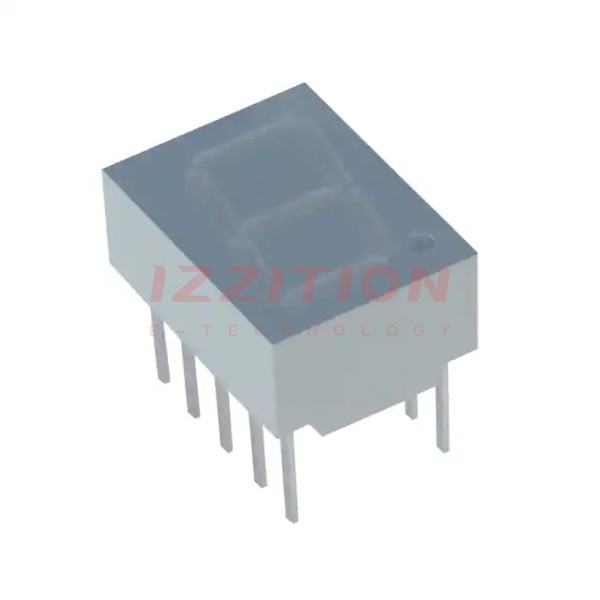

| Part Number | LTS-4802BJS-H1 | LTS-4802BJF-H1 | LTS-4802BJR-H1 |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) | 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) | 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode |
| Color | Yellow | Orange-Yellow | Red |
| Voltage - Forward (Vf) (Typ) | 2.05V | 2.05V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.65mcd | 0.65mcd | 0.65mcd |
| Wavelength - Peak | 588nm | 611nm | 639nm |
| Power Dissipation (Max) | 40mW | 70mW | 70mW |
| Package / Case | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) | 10-DIP (0.300", 7.62mm) |
