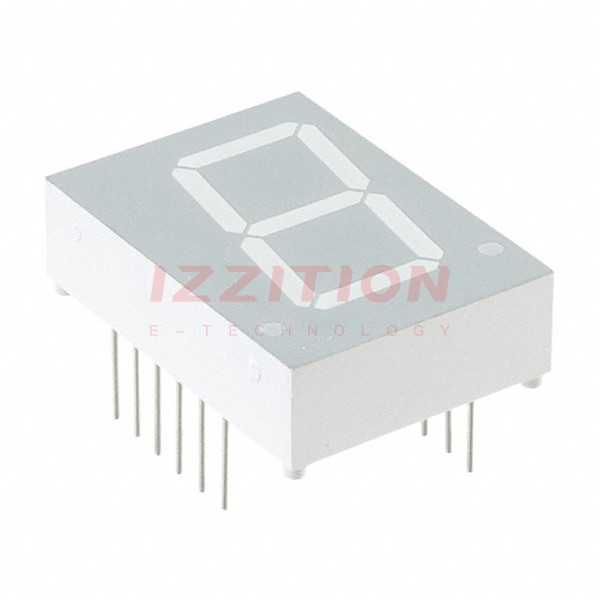

| Part Number | LTS-3401LG | LTS-3403LG | LTS-3401LY |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) |
| Digit/Alpha Size | 0.80" (20.32mm) | 0.80" (20.32mm) | 0.80" (20.32mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Cathode | Common Anode |
| Color | Green | Green | Yellow |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 2.4mcd | 2.4mcd | 2.4mcd |
| Wavelength - Peak | 565nm | 565nm | 585nm |
| Power Dissipation (Max) | 75mW | 75mW | 60mW |
| Package / Case | 18-DIP (0.600", 15.24mm), 13 Leads | 18-DIP (0.600", 15.24mm), 13 Leads | 18-DIP (0.600", 15.24mm), 13 Leads |
