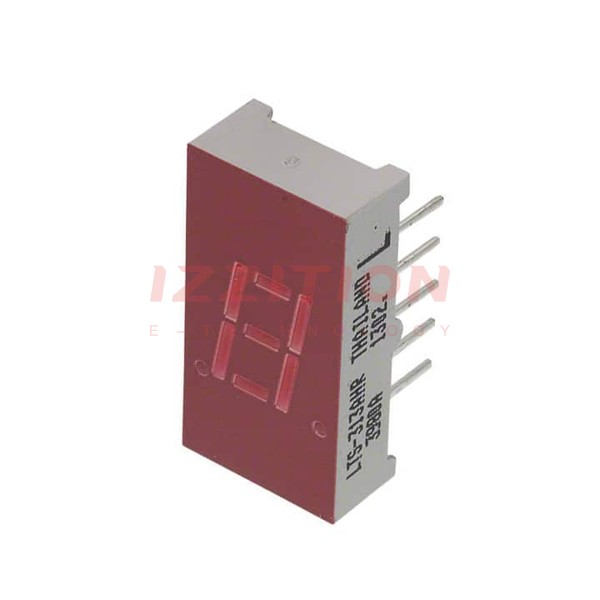

| Part Number | LTS-313AHR | LTS-315AHR | LTS-312AHR |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Active |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 1 |
| Size / Dimension | 0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm) | 0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm) | 0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm) |
| Digit/Alpha Size | 0.30" (7.65mm) | 0.30" (7.62mm) | 0.30" (7.62mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Anode |
| Color | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 2mcd | 2mcd | 2mcd |
| Wavelength - Peak | 635nm | 635nm | 635nm |
| Power Dissipation (Max) | 75mW | 75mW | 75mW |
| Package / Case | 10-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm), 10 Leads | 14-DIP (0.300", 7.62mm), 11 Leads |
