LTPL-P00DMS27
  • Share:

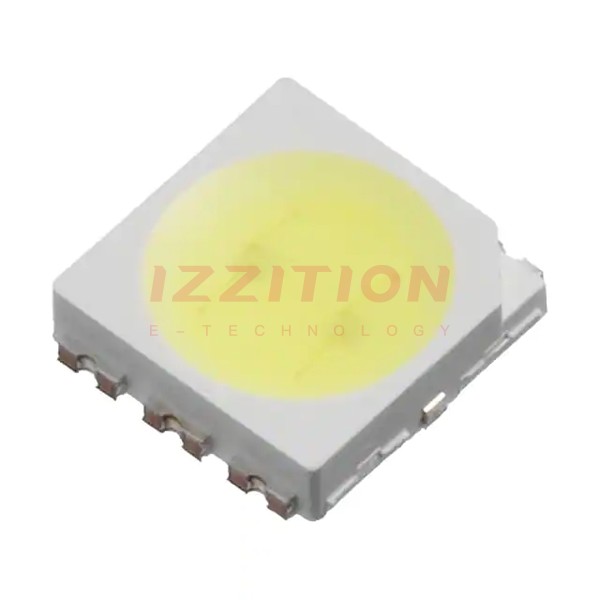

Lite-On Inc. LTPL-P00DMS27

Manufacturer No:
LTPL-P00DMS27
Manufacturer:
Lite-On Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTPL-P00DMS27 Datasheet
ECAD Model:
-
Description:
LED WHITE WARM 80CRI SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Color:White, Warm
CCT (K):-
Flux @ 85°C, Current - Test:-
Flux @ 25°C, Current - Test:45lm (Typ)
Current - Test:75mA
Voltage - Forward (Vf) (Typ):3.27V
Lumens/Watt @ Current - Test:184 lm/W
CRI (Color Rendering Index):80 (Typ)
Current - Max:75mA
Viewing Angle:120°
Mounting Type:Surface Mount
Package / Case:2020 (5050 Metric)
Supplier Device Package:-
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):0.055" (1.40mm)
0 Remaining View Similar

In Stock

-
317

Please send RFQ , we will respond immediately.
