LTPL-M13706ZS30-T0
  • Share:

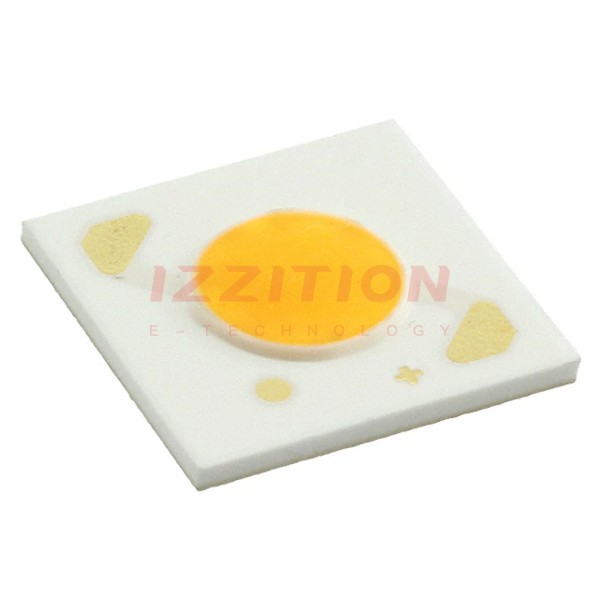

Lite-On Inc. LTPL-M13706ZS30-T0

Manufacturer No:
LTPL-M13706ZS30-T0
Manufacturer:
Lite-On Inc.
Package:
Tray
Datasheet:
LTPL-M13706ZS30-T0 Datasheet
ECAD Model:
-
Description:
LED COB CCT 5700K 80CRI SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Chip On Board (COB)
Color:White, Warm
CCT (K):3000K 3-Step MacAdam Ellipse
Wavelength:-
Configuration:Square
Luminous Flux @ Current/Temperature:460lm (Typ)
Current - Test:100mA
Temperature - Test:25°C
Voltage - Forward (Vf) (Typ):36.8V
Lumens/Watt @ Current - Test:125 lm/W
Current - Max:150mA
CRI (Color Rendering Index):80
Viewing Angle:120°
Features:-
Size / Dimension:13.35mm L x 13.35mm W
Height:1.60mm
Light Emitting Surface (LES):6.30mm Dia
Lens Type:Flat
0 Remaining View Similar

In Stock

-
120

Please send RFQ , we will respond immediately.
