Please send RFQ , we will respond immediately.

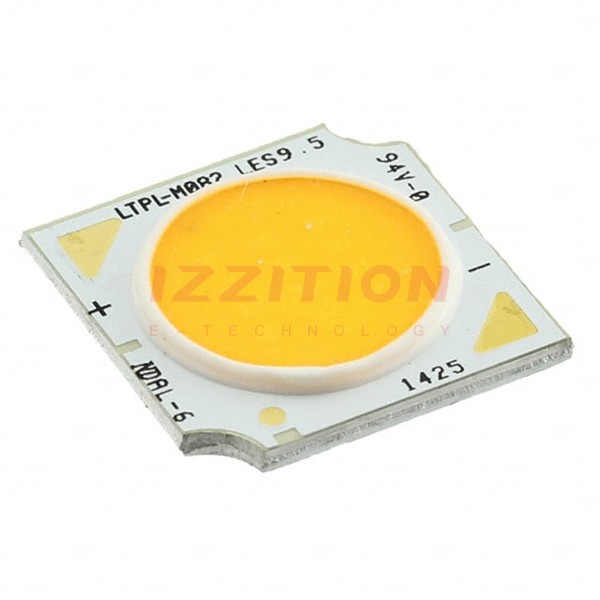

| Part Number | LTPL-M08218ZS30-T0 | LTPL-M08218ZS40-T0 | LTPL-M08208ZS30-T0 | LTPL-M08210ZS30-T0 |
|---|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Type | Chip On Board (COB) | Chip On Board (COB) | Chip On Board (COB) | Chip On Board (COB) |
| Color | White, Warm | White, Neutral | White, Warm | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse | 4000K 3-Step MacAdam Ellipse | 3000K 3-Step MacAdam Ellipse | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - | - | - | - |
| Configuration | Square | Square | Square | Square |
| Luminous Flux @ Current/Temperature | 1630lm (Typ) | 1650lm (Typ) | 812lm (Typ) | 1070lm (Typ) |
| Current - Test | 360mA | 360mA | 180mA | 240mA |
| Temperature - Test | 25°C | 25°C | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 36.5V | 36.5V | 36V | 36.5V |
| Lumens/Watt @ Current - Test | 124 lm/W | 126 lm/W | 125 lm/W | 122 lm/W |
| Current - Max | 600mA | 600mA | 300mA | 400mA |
| CRI (Color Rendering Index) | 80 | 80 | 80 | 80 |
| Viewing Angle | 120° | 120° | 120° | 120° |
| Features | - | - | - | - |
| Size / Dimension | 13.50mm L x 13.50mm W | 13.50mm L x 13.50mm W | 13.50mm L x 13.50mm W | 13.50mm L x 13.50mm W |
| Height | 1.80mm | 1.80mm | 1.80mm | 1.80mm |
| Light Emitting Surface (LES) | 9.50mm Dia | 9.50mm Dia | 9.50mm Dia | 9.50mm Dia |
| Lens Type | Flat | Flat | Flat | Flat |
