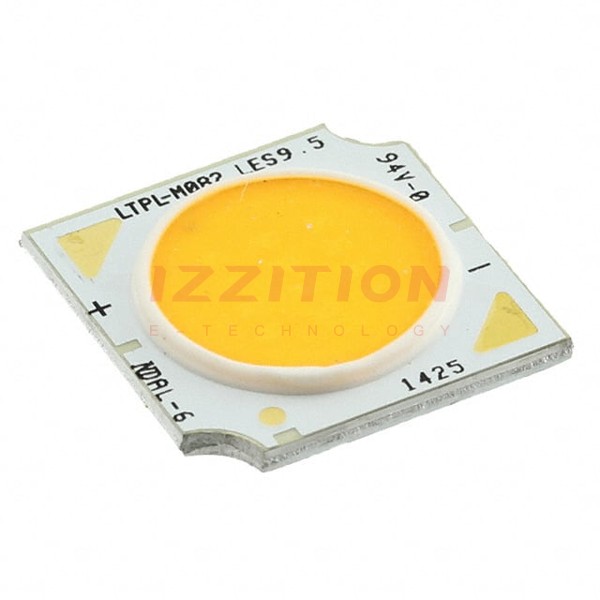

| Part Number | LTPL-M08206ZS50-F1 | LTPL-M08206ZS57-F1 |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Color | White, Cool | White, Cool |
| CCT (K) | 5000K 5-Step MacAdam Ellipse | 5700K 5-Step MacAdam Ellipse |
| Wavelength | - | - |
| Configuration | Square | Square |
| Luminous Flux @ Current/Temperature | 637lm (Typ) | 593lm (Typ) |
| Current - Test | 120mA | 120mA |
| Temperature - Test | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 36.5V | 36.5V |
| Lumens/Watt @ Current - Test | 145 lm/W | 135 lm/W |
| Current - Max | 200mA | 200mA |
| CRI (Color Rendering Index) | 80 | 80 |
| Viewing Angle | 120° | 120° |
| Features | - | - |
| Size / Dimension | 13.50mm L x 13.50mm W | 13.50mm L x 13.50mm W |
| Height | 1.80mm | 1.80mm |
| Light Emitting Surface (LES) | 9.50mm Dia | 9.50mm Dia |
| Lens Type | Flat | Flat |
