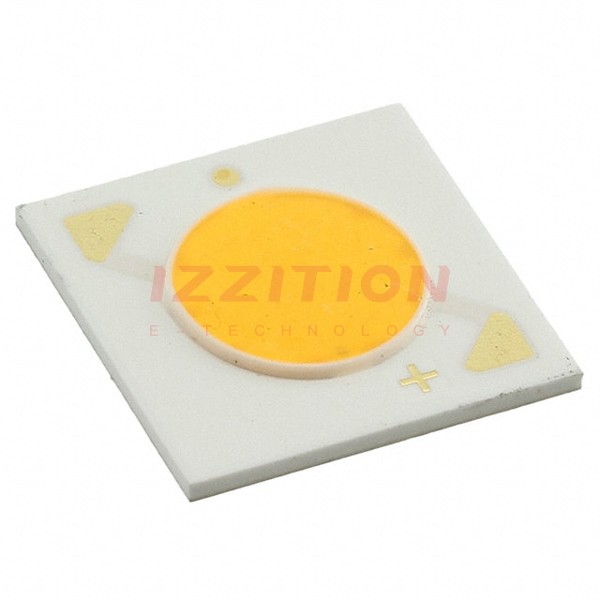

| Part Number | LTPL-M03618ZS50-F1 | LTPL-M03614ZS50-F1 |
|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Color | White, Cool | White, Cool |
| CCT (K) | 5000K 5-Step MacAdam Ellipse | 5000K 5-Step MacAdam Ellipse |
| Wavelength | - | - |
| Configuration | Square | Square |
| Luminous Flux @ Current/Temperature | 2155lm (Typ) | 1723lm (Typ) |
| Current - Test | 450mA | 350mA |
| Temperature - Test | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 39.5V | 38.5V |
| Lumens/Watt @ Current - Test | 121 lm/W | 128 lm/W |
| Current - Max | 500mA | 400mA |
| CRI (Color Rendering Index) | 80 | 80 |
| Viewing Angle | 120° | 120° |
| Features | - | - |
| Size / Dimension | 15.85mm L x 15.85mm W | 15.85mm L x 15.85mm W |
| Height | 1.60mm | 1.60mm |
| Light Emitting Surface (LES) | 8.90mm Dia | 8.90mm Dia |
| Lens Type | Flat | Flat |
