Please send RFQ , we will respond immediately.

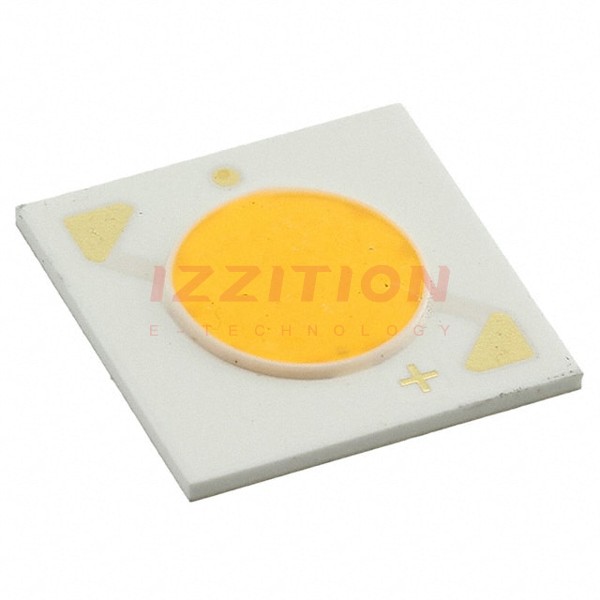

| Part Number | LTPL-M03618ZS40-T0 | LTPL-M03614ZS40-T0 | LTPL-M03618ZS30-T0 |
|---|---|---|---|
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Type | Chip On Board (COB) | Chip On Board (COB) | Chip On Board (COB) |
| Color | White, Neutral | White, Warm | White, Warm |
| CCT (K) | 4000K 3-Step MacAdam Ellipse | 2700K 3-Step MacAdam Ellipse | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - | - | - |
| Configuration | Square | Square | Square |
| Luminous Flux @ Current/Temperature | 2135lm (Typ) | 1546lm (Typ) | 2014lm (Typ) |
| Current - Test | 450mA | 350mA | 450mA |
| Temperature - Test | 25°C | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 39.5V | 38.5V | 39.5V |
| Lumens/Watt @ Current - Test | 120 lm/W | 115 lm/W | 113 lm/W |
| Current - Max | 500mA | 400mA | 500mA |
| CRI (Color Rendering Index) | 80 | 80 | 80 |
| Viewing Angle | 120° | 120° | 120° |
| Features | - | - | - |
| Size / Dimension | 15.85mm L x 15.85mm W | 15.85mm L x 15.85mm W | 15.85mm L x 15.85mm W |
| Height | 1.60mm | 1.60mm | 1.60mm |
| Light Emitting Surface (LES) | 8.90mm Dia | 8.90mm Dia | 8.90mm Dia |
| Lens Type | Flat | Flat | Flat |
